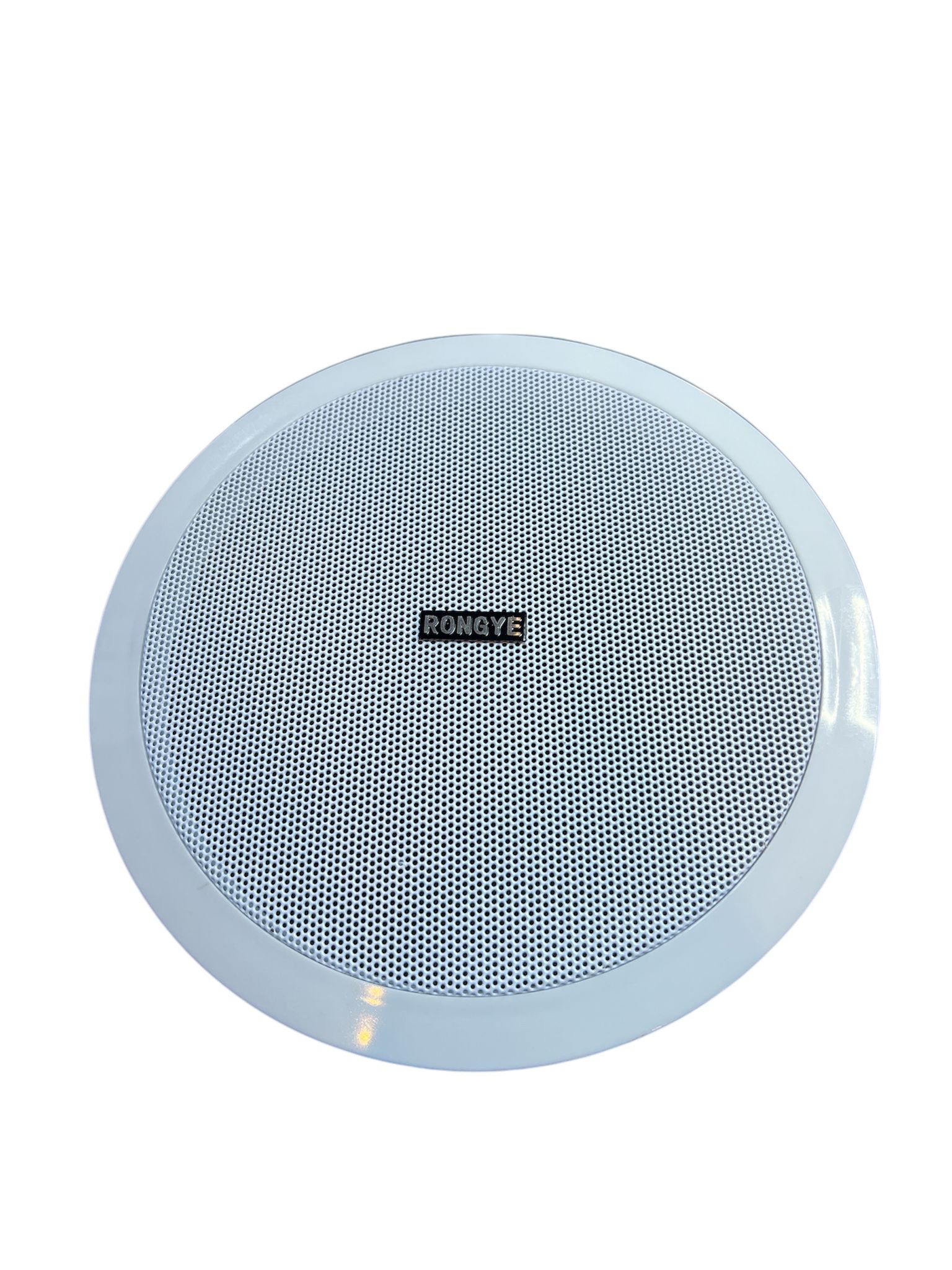

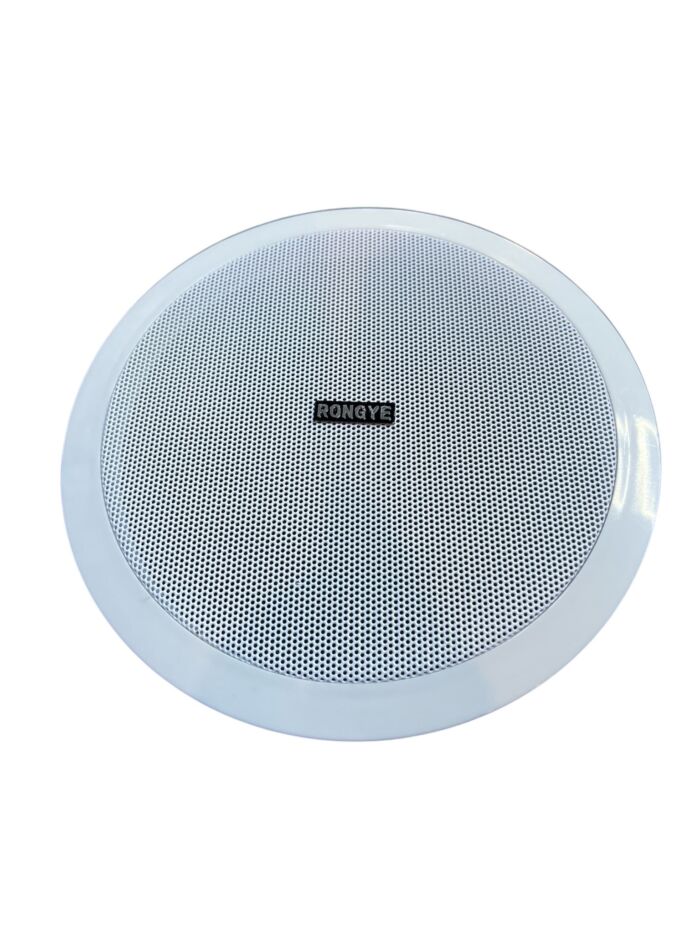

CLS-606 T Ceiling Loudspeaker Installation and Setup Guide

Ceiling Board Preparation

1. Cutout Size: Prepare a circular cutout in the ceiling with a diameter of 163mm.
2. Ensure Clean Edges: Make sure the cutout edges are clean to ensure proper fitting of the speaker.

Power Tapping Selection

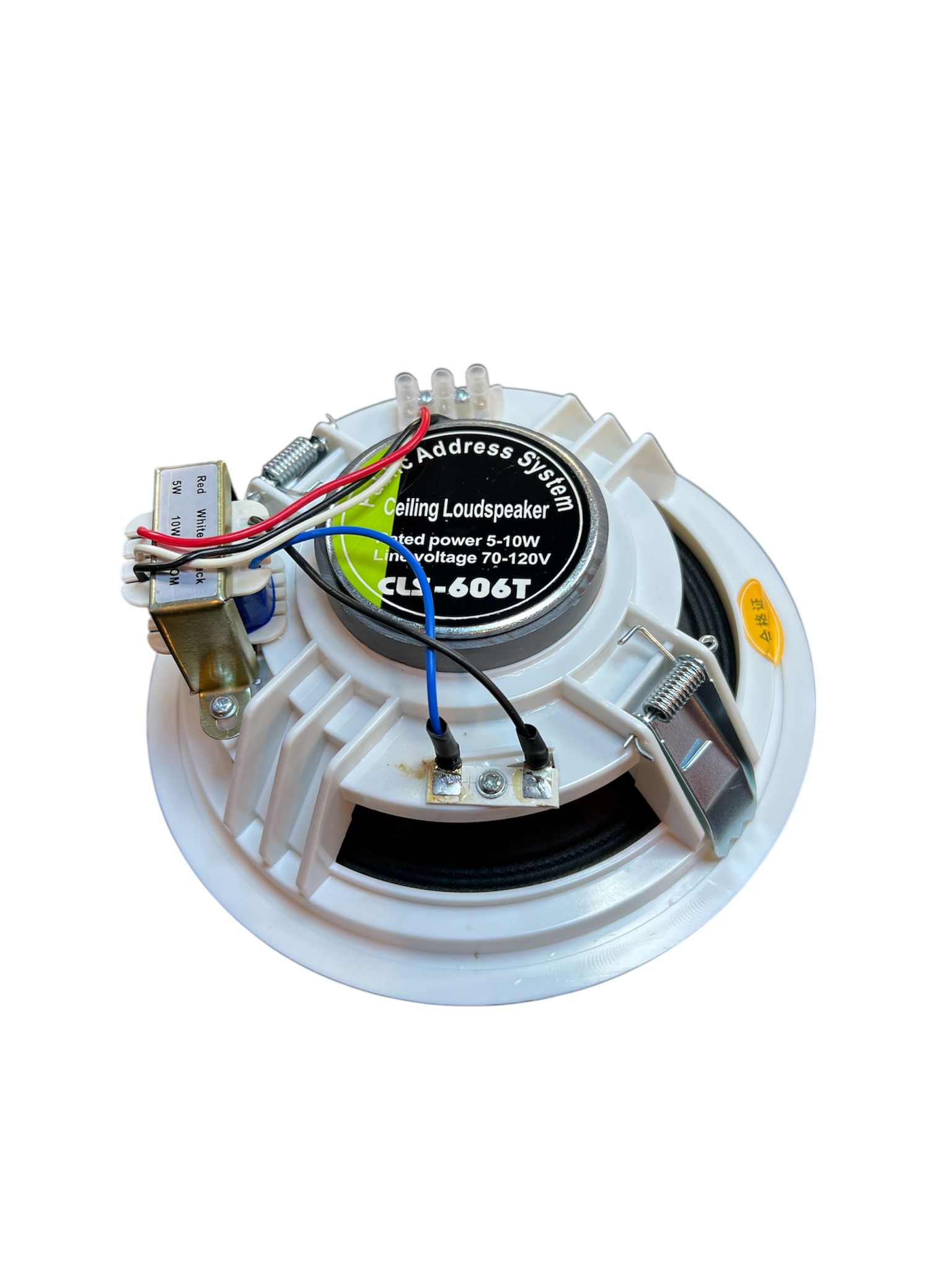

1. The speaker allows power tapping on a 100V line:
   • 5W: Connect to the Blue wire.
   • 10W: Connect to the Red wire.
   • Common Ground (COM): Connect to the Black wire.
2. Choose the correct power tap based on your system requirements.

Cable Connection

1. Wiring: Terminate the incoming speaker cable to the correct taps (Blue/Red for power, Black for COM).
2. Polarity: Ensure correct polarity when connecting the cables to avoid phase issues.

Speaker Mounting

1. Lift Mounting Springs: Press or lift the mounting springs inward to insert the speaker into the prepared ceiling cutout.
2. Secure to Ceiling: The springs will automatically secure the speaker to the ceiling once released.

General Notes

• Ensure all connections are secure before powering the system.
• Always check compatibility with the existing background music or public announcement network system.
